ZUOYA TES84 Hotswap DIY Mechanical Keyboard Kit wired Type-c 3/5pin RGB Backlit Metal middle frame Customized Kit

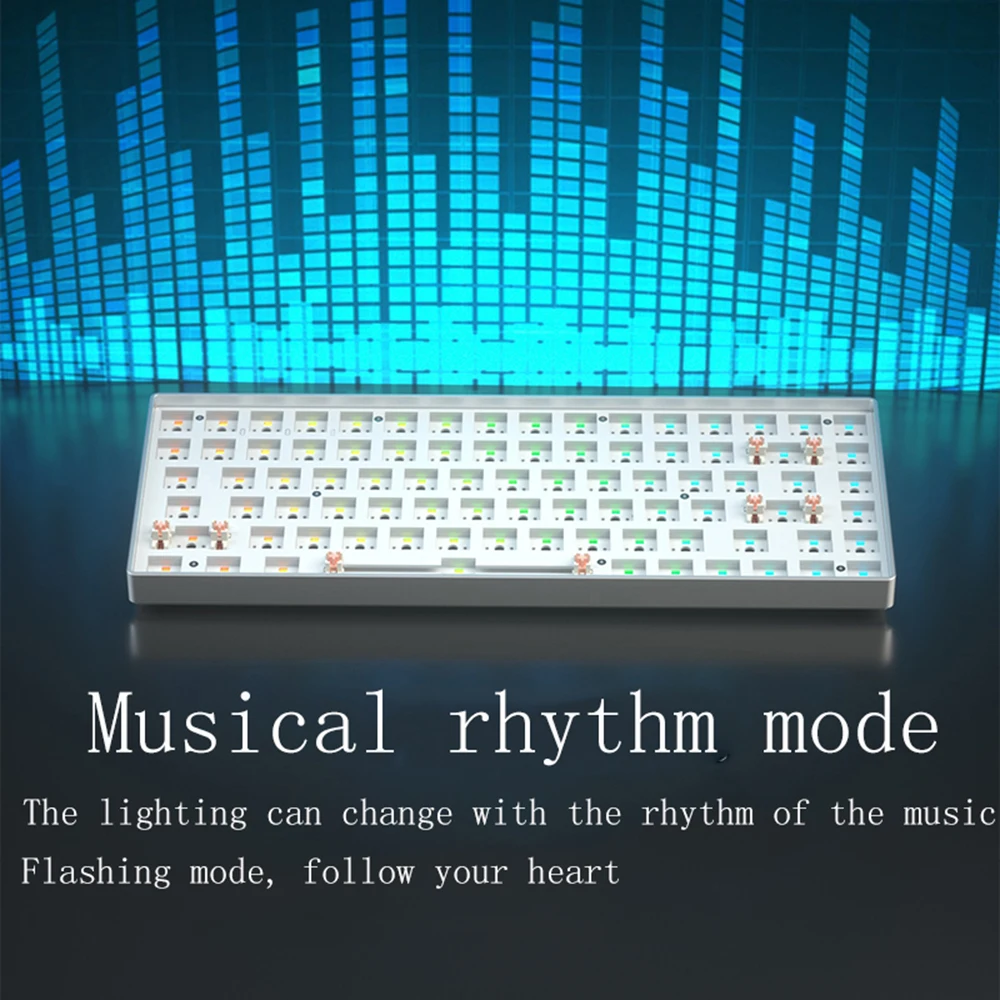

TES84 keyboard backlight can be changed with the rhythm of the system sound

Product name: TESTER 84

Product code: TES84
Product configuration: standard 84-key compact configuration

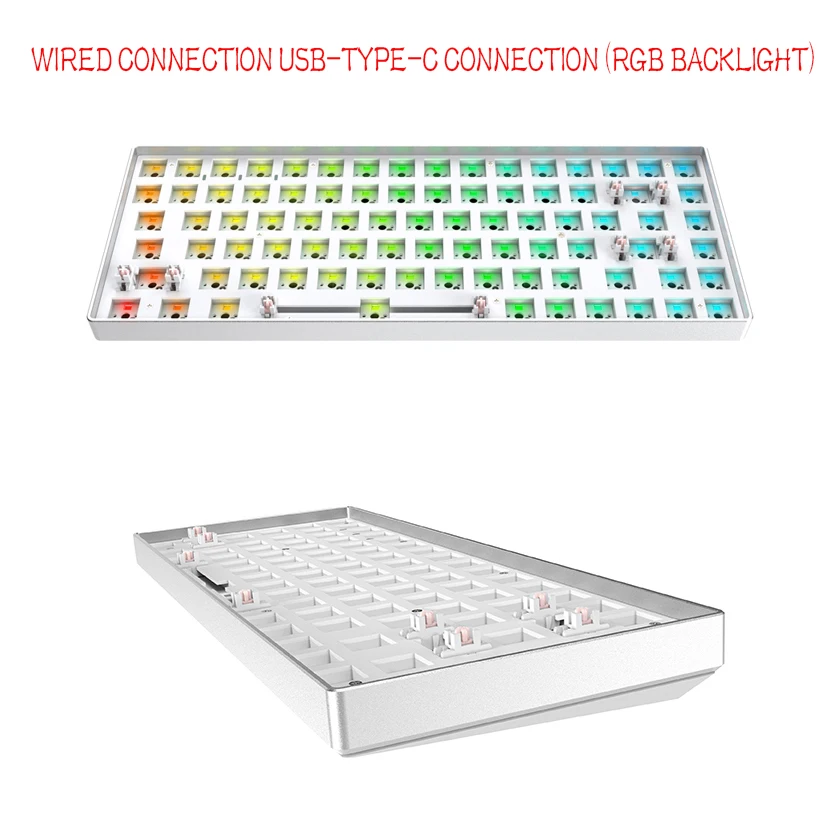

Connection method: Type-c wired hot plug connection
Backlight Mode: RGB Symphony Backlight Reverse LED

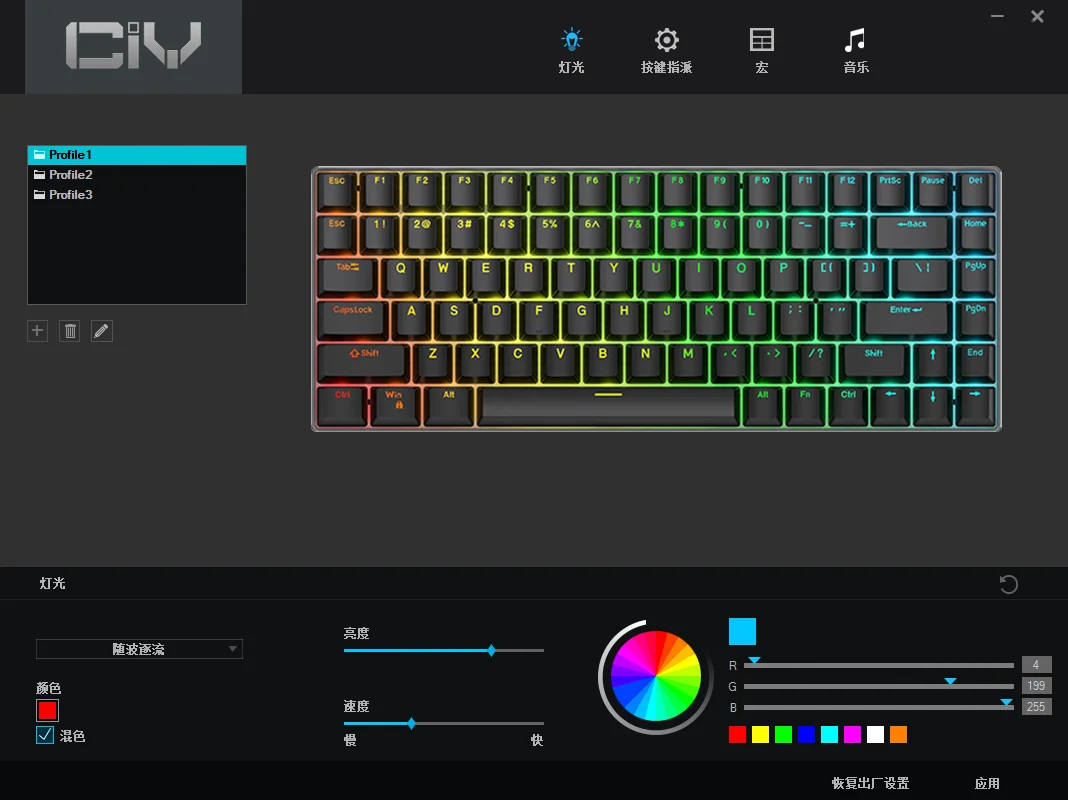

Driver software: support button customization and backlight adjustment

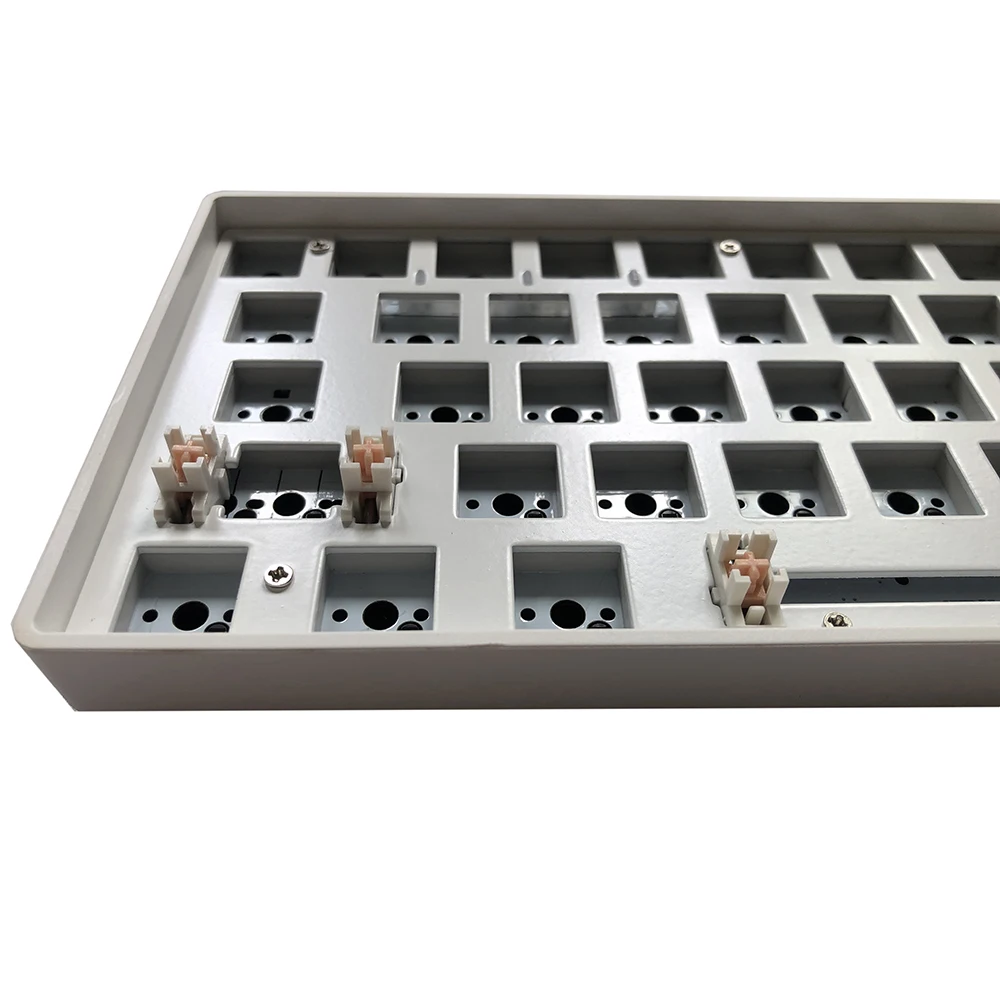

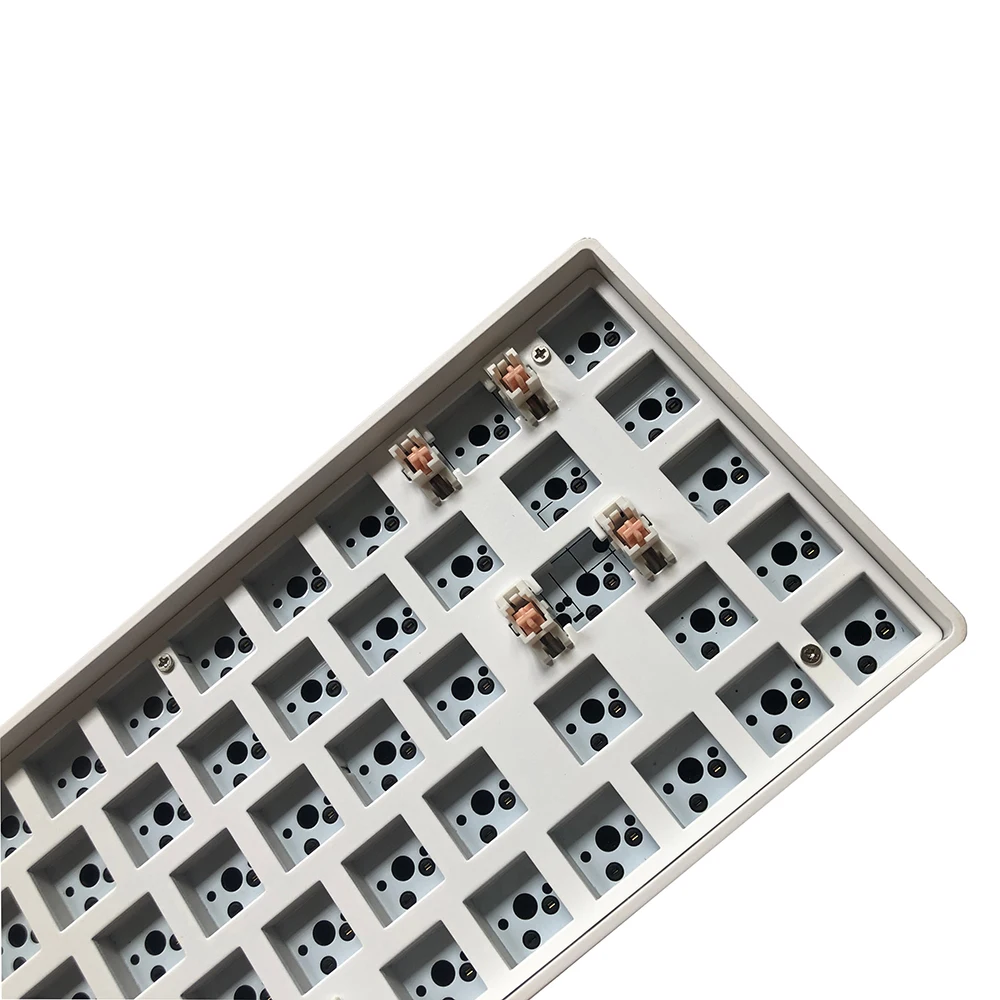

Positioning plate: white powder-coated counterbore metal positioning plate

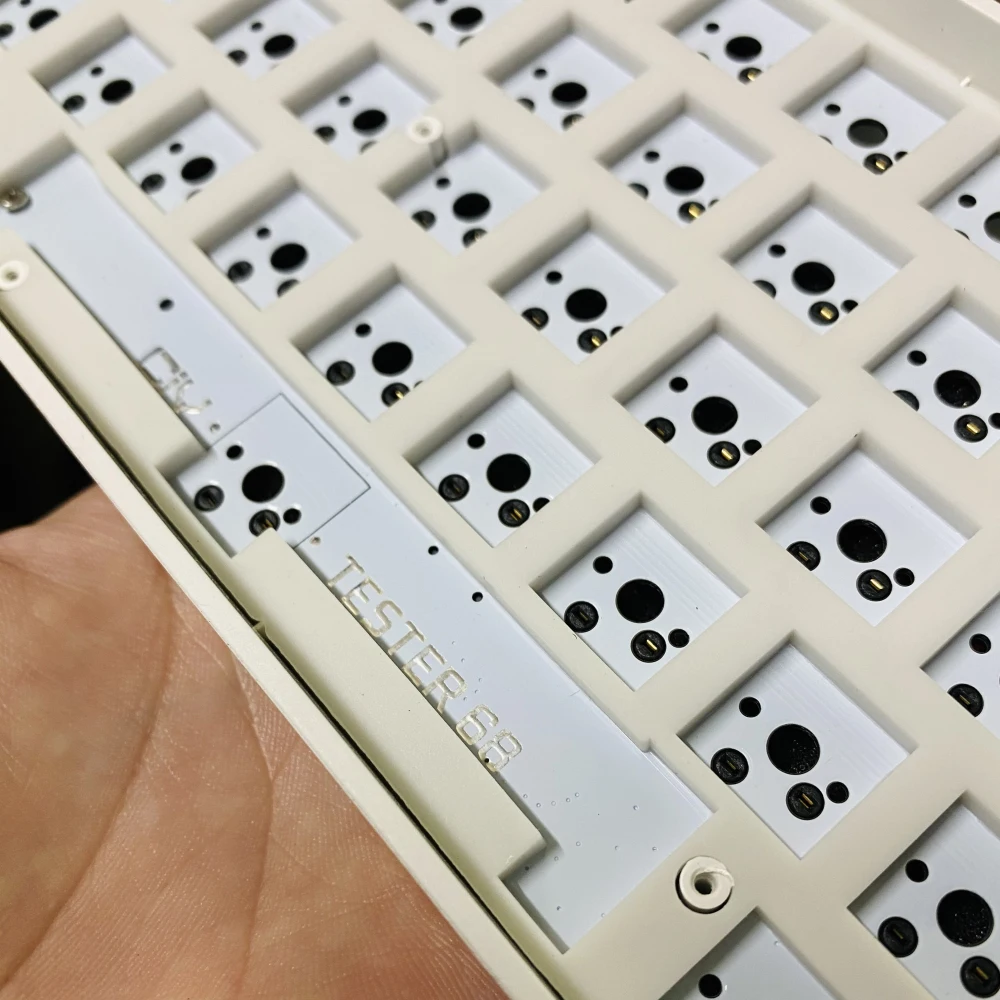

PCBA: White 1.2mm thick hardened double-sided PCBA
Silencing configuration: Sandwich voiceless silica gel + bottom voiceless silica gel pad

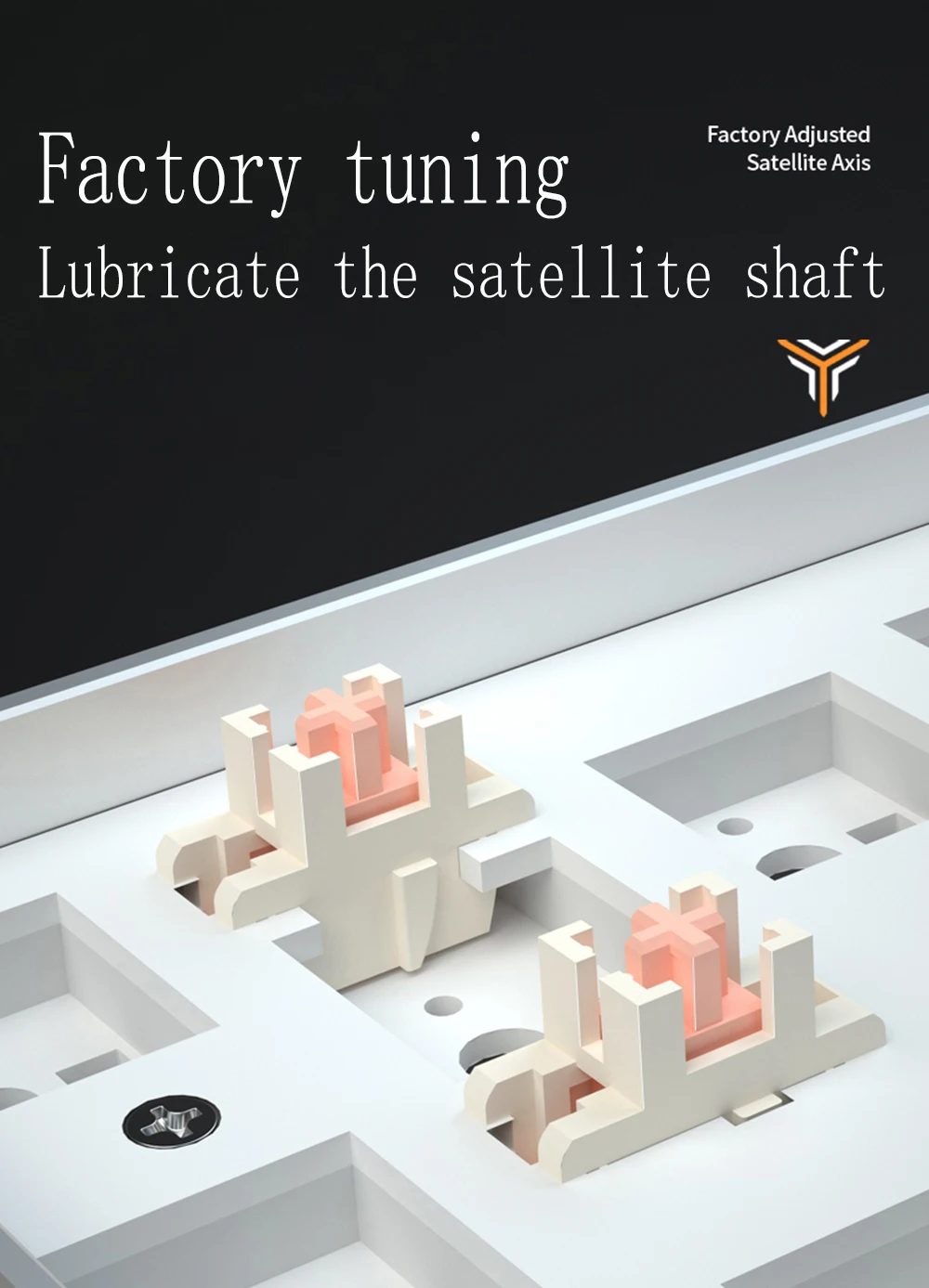

Satellite axis: POM positioning board satellite axis

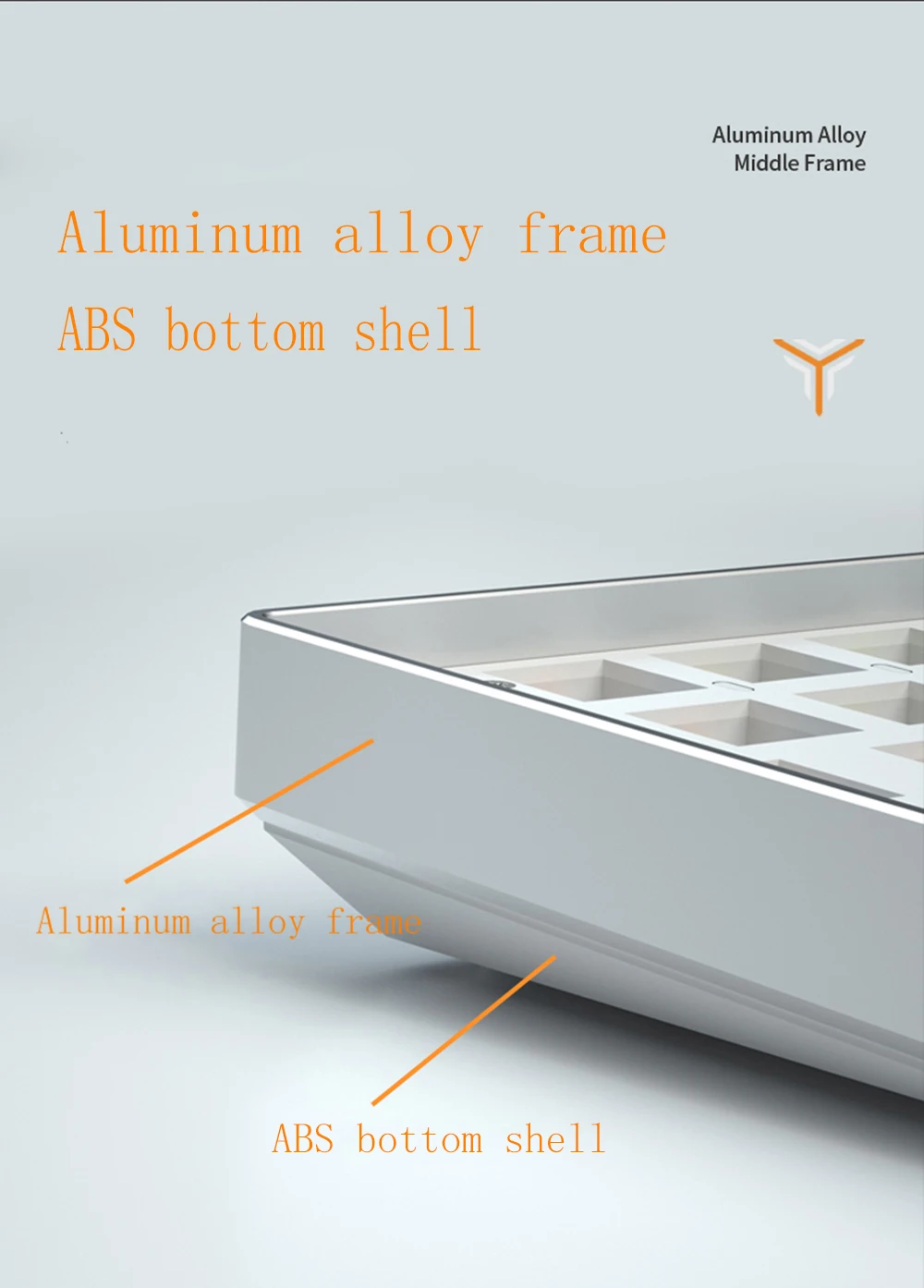

Shell: aluminum alloy middle frame + ABS plastic bottom shell
Tripod: Single section movable tripod

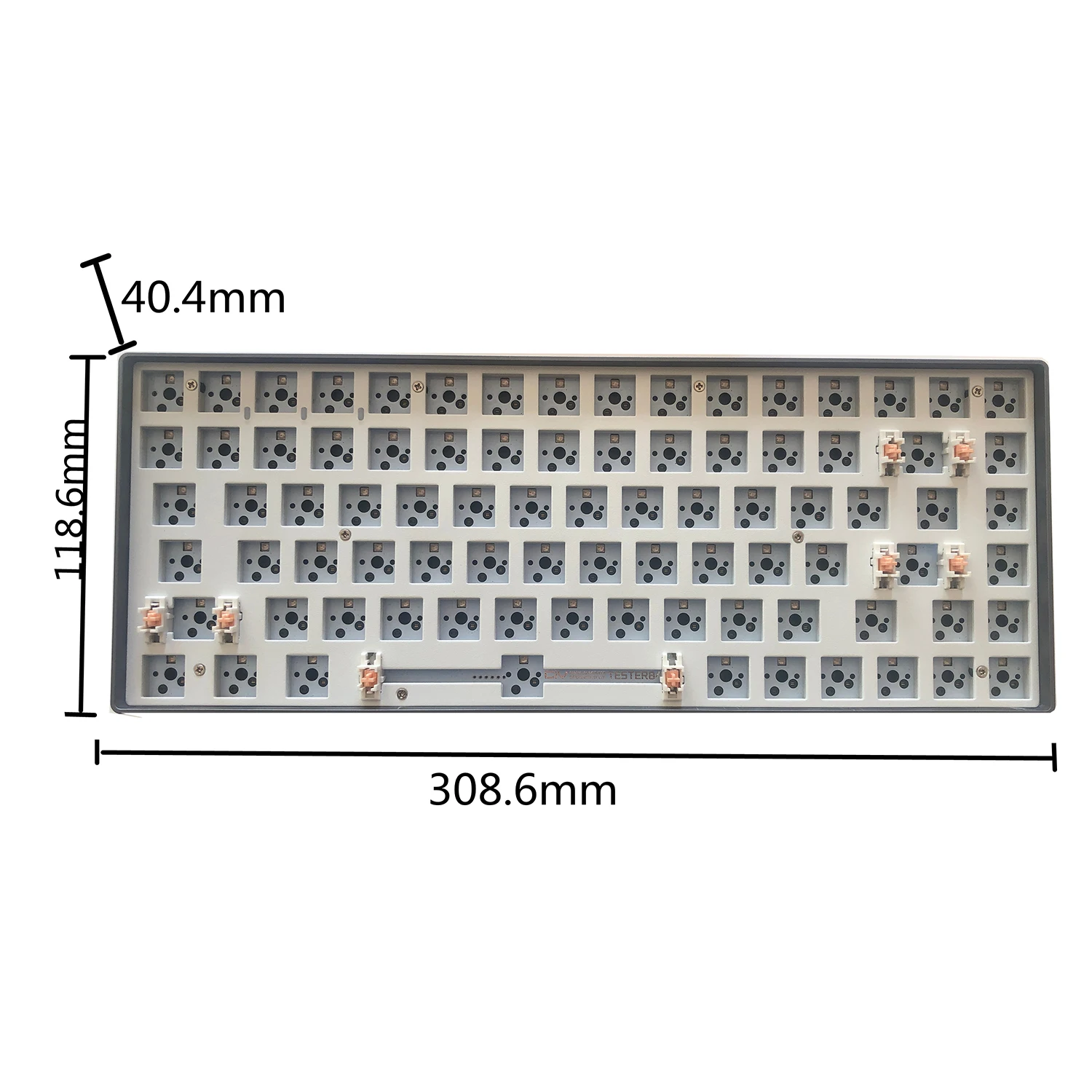

Size: 310*120*30mm

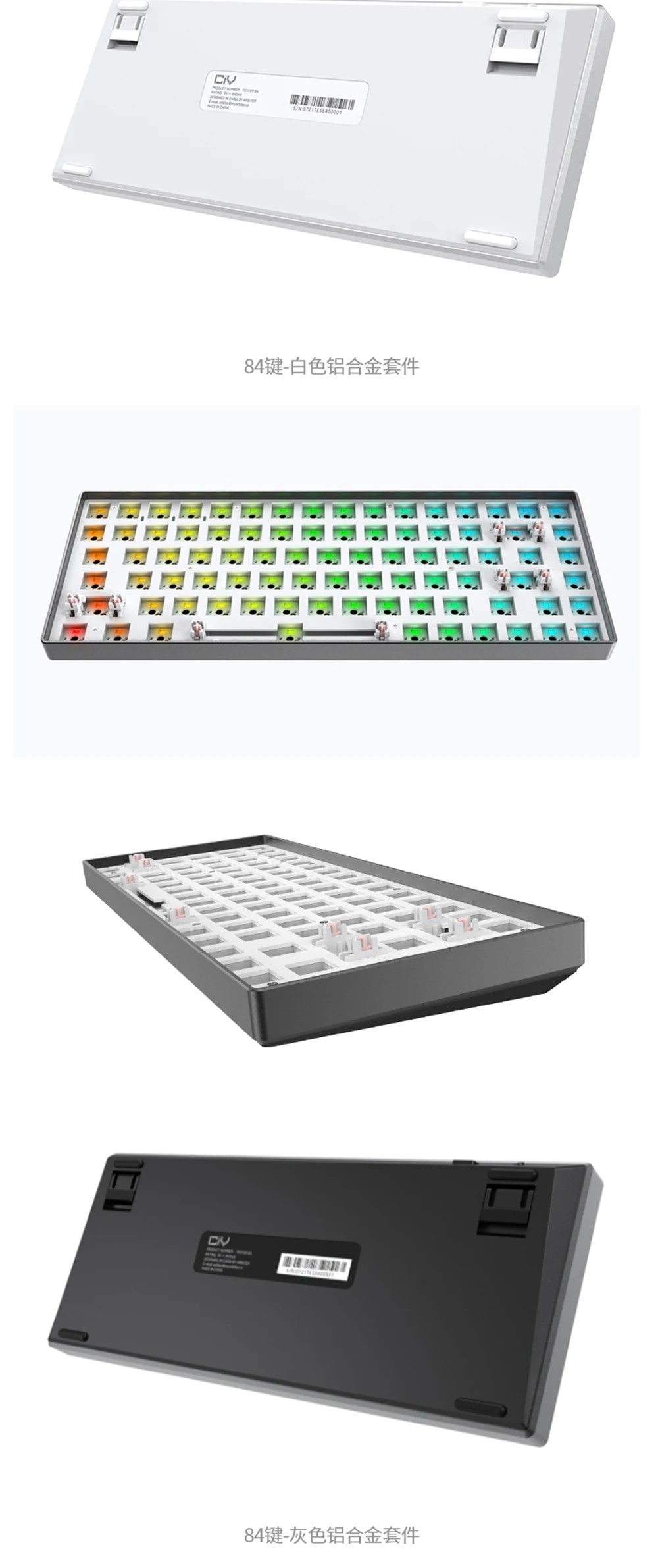

Color: silver white/gray black optional

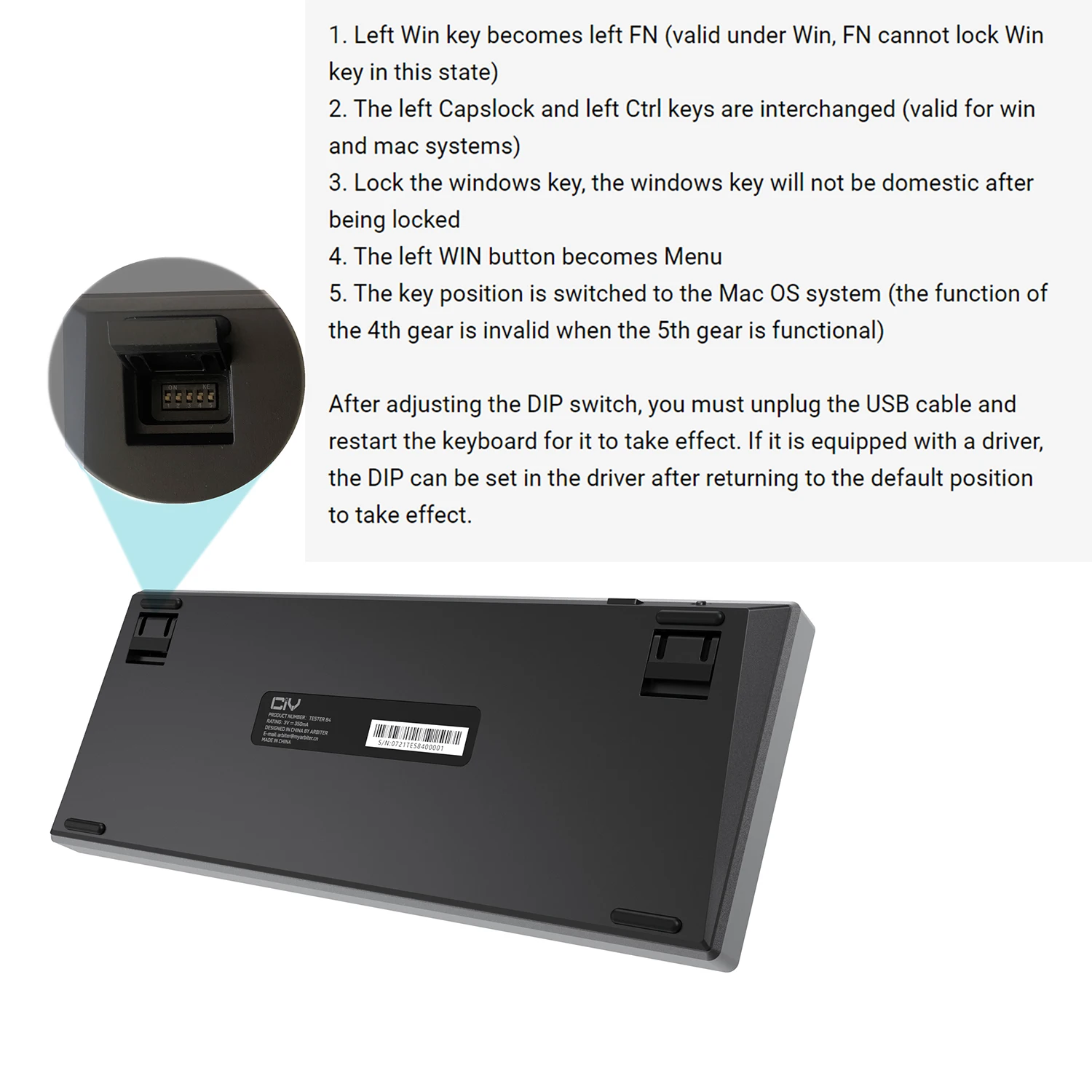

Encoding switch function:

1. Left Win key becomes left FN (valid under Win, FN cannot lock Win key in this state)

2. The left Capslock and left Ctrl keys are interchanged (valid for win and mac systems)

3. Lock the windows key, the windows key will not be domestic after being locked

4. The left WIN button becomes Menu

5. The key position is switched to the Mac OS system (the function of the 4th gear is invalid when the 5th gear is functional)

After adjusting the DIP switch, you must unplug the USB cable and restart the keyboard for it to take effect. If it is equipped with a driver, the DIP can be set in the driver after returning to the default position to take effect

Product name: TESTER 68

Product code: TES68
Product Series: Standard 68-key compact series

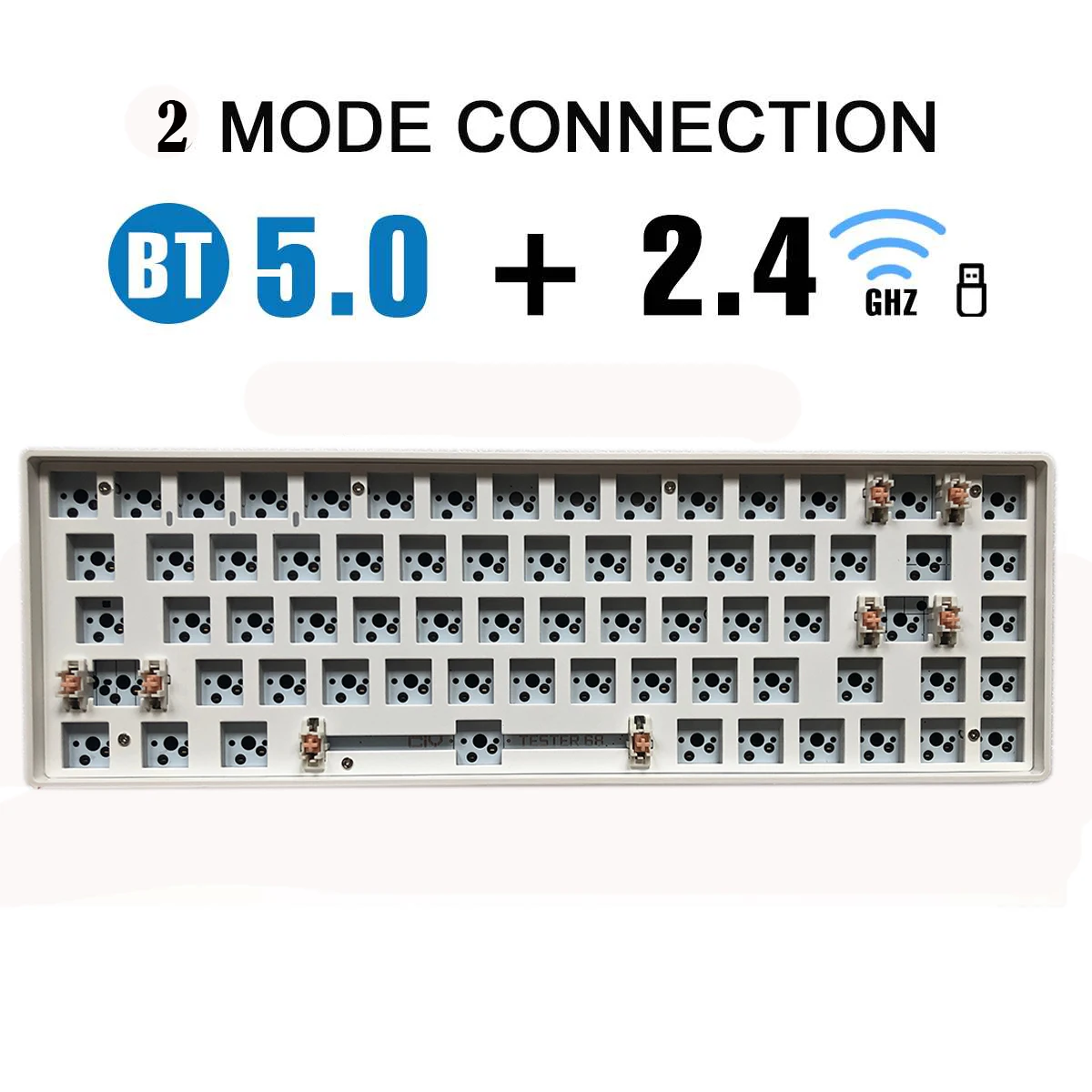

Connection mode: 2 Bluetooth 5.0+ wireless 2.4G connections
2.4G mode: 125Hz return rate, long battery life energy saving solution
Bluetooth mode: Bluetooth 5.0 protocol, support 2 machine pairing switch
Power supply mode: 2 AAA batteries
Positioning plate: white oil-injected metal positioning plate + sandwich soundproof silica gel
PCBA: white 1.2mm thick and hard double-sided PCBA
Shaft seat: CIY hot plug shaft seat
Satellite axis: white POM positioning board satellite axis
Shell: white ABS

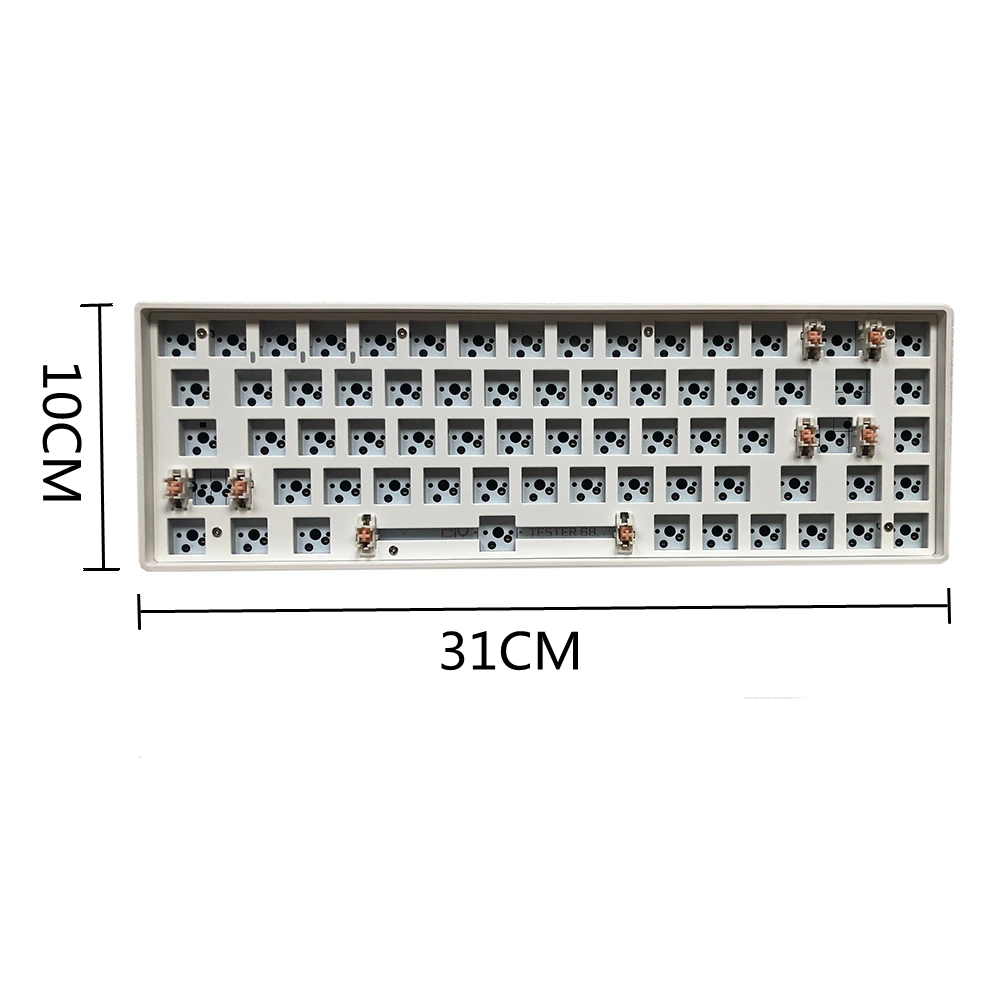

Size: 310*101*31mm

Product name: No light entry level TESTER 68

Product code: TES68
Product Series: Standard 68-key compact series
Connection mode: 2 Bluetooth 5.0+ wireless 2.4G connections
2.4G mode: 125Hz return rate, long battery life energy saving solution
Bluetooth mode: Bluetooth 5.0 protocol, support 2 machine pairing switch
Power supply mode: 2 AAA batteries
Positioning plate: white oil-injected metal positioning plate + sandwich soundproof silica gel
PCBA: white 1.2mm thick and hard double-sided PCBA
Shaft seat: CIY hot plug shaft seat
Satellite axis: white POM positioning board satellite axis
Shell: white ABS
Size: 310*101*31mm
